Designed for maximum visibility in demanding airfield environments, the Retro-Reflective Taxiway Marker provides a durable, maintenance-free solution for marking taxiway edges, closed surfaces, and restricted areas. Its high-performance retro-reflective body delivers outstanding day and night visibility, while the rugged UV-resistant construction withstands harsh weather and airside conditions. Featuring a standard 2" NPT threaded base, it installs easily on a variety of mounting systems and is available in multiple lengths to suit your application.
T/C: Provides edge light marking in accordance with Transport Canada TP312E para. 6.1.1.3.
ICAO: Annex 14, Vol. 1, para. 6.1.7
Provides superior day or night visibility of edge light location for snow removal or other maintenance operations.
Available with optional high grade retro-reflective bands to greatly increase night time visibility.
Low temperature nylon tubing maintains flexibility to -40°C. Weatherproof: exposure to ice, snow and rain.
Fluorescent orange colour allows for extreme daytime visibility.
No vinyl sleeves that fade and crack in cold temperatures.
Marker flexibility is maintained without requirement for a mounting spring.
Retro-reflective bands meet the reflectivity requirements of ASTM D4956-01a Type V sheeting.

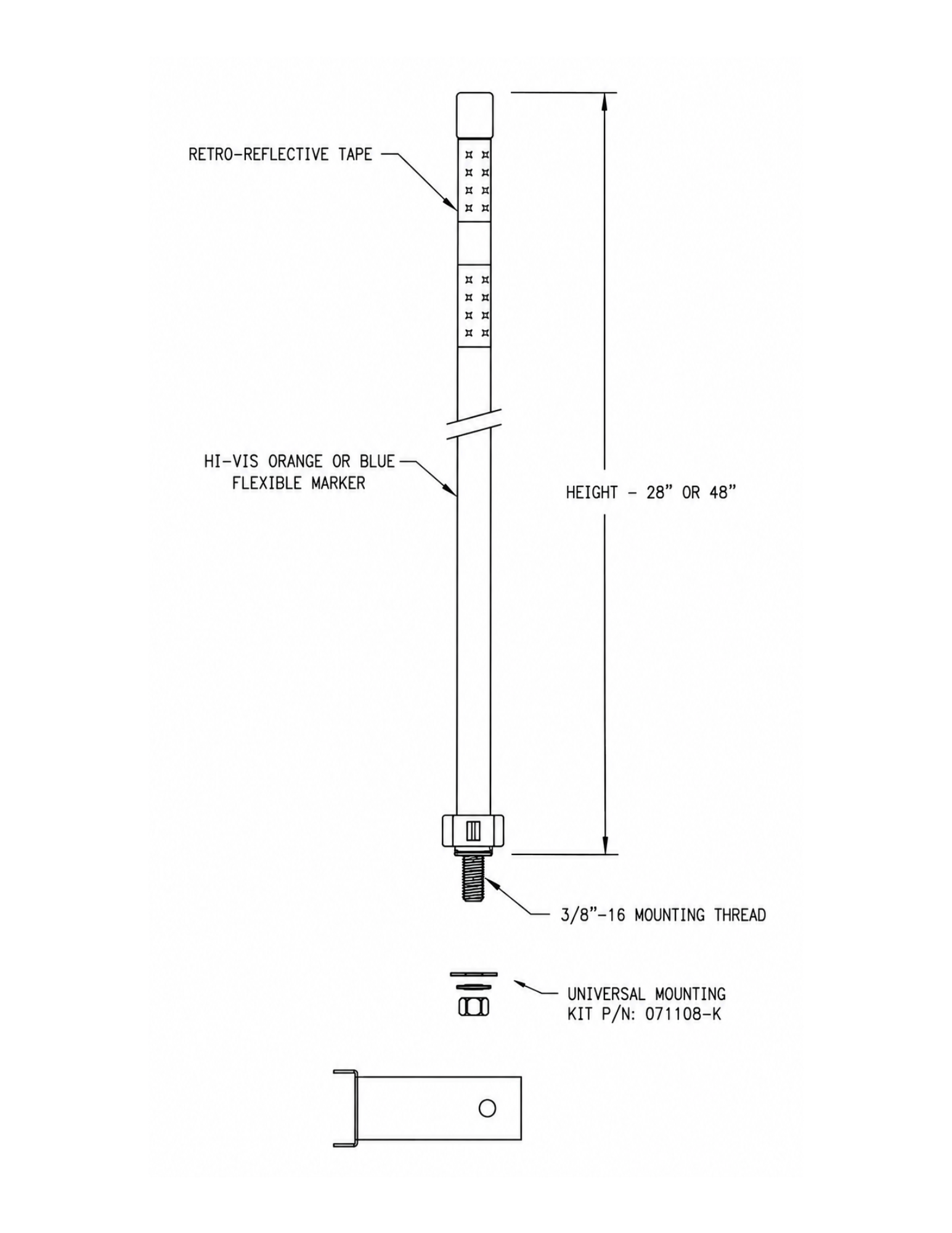

Provided with an integral 3/8"-16 male mounting thread for mounting onto:
Pulpit or basecan cover with 3/8" tapped hole.
Edge light fixture with optional mounting bracket (ordered separately).
Overall diameter of tube is 3/4" (19 mm) which helps maintain a lightweight yet robust design.
Field tested, thousands in service.
U.S. Patent.
Temperature: -40°F to +131°F (-40°C to +55°C)
Wind: Velocities up to 250 kph
Designed for maximum visibility in demanding airfield environments, the Retro-Reflective Taxiway Marker provides a durable, maintenance-free solution for marking taxiway edges, closed surfaces, and restricted areas. Its high-performance retro-reflective body delivers outstanding day and night visibility, while the rugged UV-resistant construction withstands harsh weather and airside conditions. Featuring a standard 2" NPT threaded base, it installs easily on a variety of mounting systems and is available in multiple lengths to suit your application.
T/C: Provides edge light marking in accordance with Transport Canada TP312E para. 6.1.1.3.
ICAO: Annex 14, Vol. 1, para. 6.1.7
Provides superior day or night visibility of edge light location for snow removal or other maintenance operations.
Available with optional high grade retro-reflective bands to greatly increase night time visibility.
Low temperature nylon tubing maintains flexibility to -40°C. Weatherproof: exposure to ice, snow and rain.
Fluorescent orange colour allows for extreme daytime visibility.
No vinyl sleeves that fade and crack in cold temperatures.
Marker flexibility is maintained without requirement for a mounting spring.
Retro-reflective bands meet the reflectivity requirements of ASTM D4956-01a Type V sheeting.
Provided with an integral 3/8"-16 male mounting thread for mounting onto:
Pulpit or basecan cover with 3/8" tapped hole.
Edge light fixture with optional mounting bracket (ordered separately).
Overall diameter of tube is 3/4" (19 mm) which helps maintain a lightweight yet robust design.
Field tested, thousands in service.
U.S. Patent.
Temperature: -40°F to +131°F (-40°C to +55°C)
Wind: Velocities up to 250 kph
