The OMNI type 910823 Retro-Reflective Taxiway Marker is approved to Transport Canada specification K-343.
Engineered for superior airfield guidance, the Retro-Reflective Taxiway Marker provides exceptional day and night visibility for taxiway, apron, and construction area delineation. Built from durable, impact-resistant materials with high-performance retro-reflective sheeting, it offers reliable performance in demanding airport environments and is available in multiple colours and sizes to suit a wide range of applications.
The Retro-Reflective Taxiway Marker is used to delineate taxiway and apron edges when no edge lighting is provided or when centreline taxiway inset lighting is used. The marker is available in different colours to suit standard or special applications.
When used with a temporary mounting baseplate, this unit makes an ideal temporary marker for construction areas on the airside.
The 910823 Retro-Reflective Marker is constructed of impact resistant plastic and features a built-in frangible coupling that will allow the marker to come apart when impacted by an aircraft or vehicle but will withstand the effects of jet blast.
The marker uses a very high grade retro-reflective material meeting or exceeding the requirements of ASTM D4956-95.
The marker is available in three standard sizes or any custom size the customer specifies.
Mounting can be accomplished by different methods:
a) 2" Rigid Galv. Steel Conduit x 18" with coupling.
b) 2" Rigid PVC Conduit x 18" with Female Adapter.
c) 2" x 2" (nom.) Wooden Stake.
d) 2" ADB Angle Mounting Stake.
e) 2" Aluminum Mounting Flange.

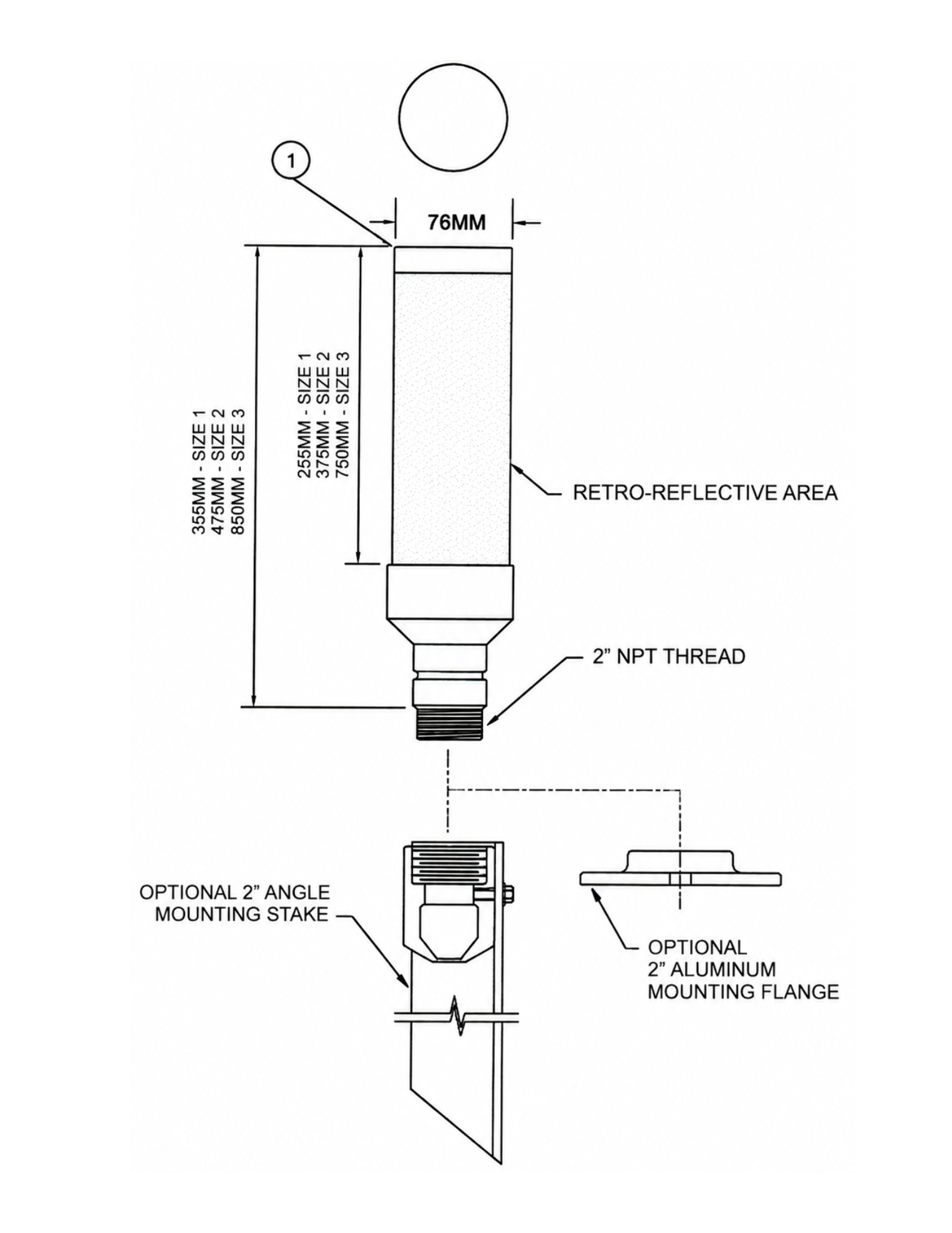

Diameter: 76 mm
Connection: 2" NPT Thread
Optional 2" Angle Mounting Stake
Optional 2" Aluminum Mounting Flange
The OMNI type 910823 Retro-Reflective Taxiway Marker is approved to Transport Canada specification K-343.
Engineered for superior airfield guidance, the Retro-Reflective Taxiway Marker provides exceptional day and night visibility for taxiway, apron, and construction area delineation. Built from durable, impact-resistant materials with high-performance retro-reflective sheeting, it offers reliable performance in demanding airport environments and is available in multiple colours and sizes to suit a wide range of applications.
The Retro-Reflective Taxiway Marker is used to delineate taxiway and apron edges when no edge lighting is provided or when centreline taxiway inset lighting is used. The marker is available in different colours to suit standard or special applications.
When used with a temporary mounting baseplate, this unit makes an ideal temporary marker for construction areas on the airside.
The 910823 Retro-Reflective Marker is constructed of impact resistant plastic and features a built-in frangible coupling that will allow the marker to come apart when impacted by an aircraft or vehicle but will withstand the effects of jet blast.
The marker uses a very high grade retro-reflective material meeting or exceeding the requirements of ASTM D4956-95.
The marker is available in three standard sizes or any custom size the customer specifies.
Mounting can be accomplished by different methods:
a) 2" Rigid Galv. Steel Conduit x 18" with coupling.
b) 2" Rigid PVC Conduit x 18" with Female Adapter.
c) 2" x 2" (nom.) Wooden Stake.
d) 2" ADB Angle Mounting Stake.
e) 2" Aluminum Mounting Flange.
Diameter: 76 mm
Connection: 2" NPT Thread
Optional 2" Angle Mounting Stake
Optional 2" Aluminum Mounting Flange
